Description

Description:  ANSI Z21.80/CSA 6.22 is the standard for line pressure regulators, suitable for application in natural, manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixture piping systems. Maxitrol, in compliance with ANSI Z21.80/CSA 6.22, offers line pressure regulators for 2 psi piping systems and piping systems up to 5 psi. Maxitrol’s 325 Series regulators are also certified (ANSI Z21.18) as appliance regulators. Appliance regulators were often used as line pressure regulators before the ANSI Z21.80/CSA 6.22 standard was developed.

Manufacturer:  Maxitrol

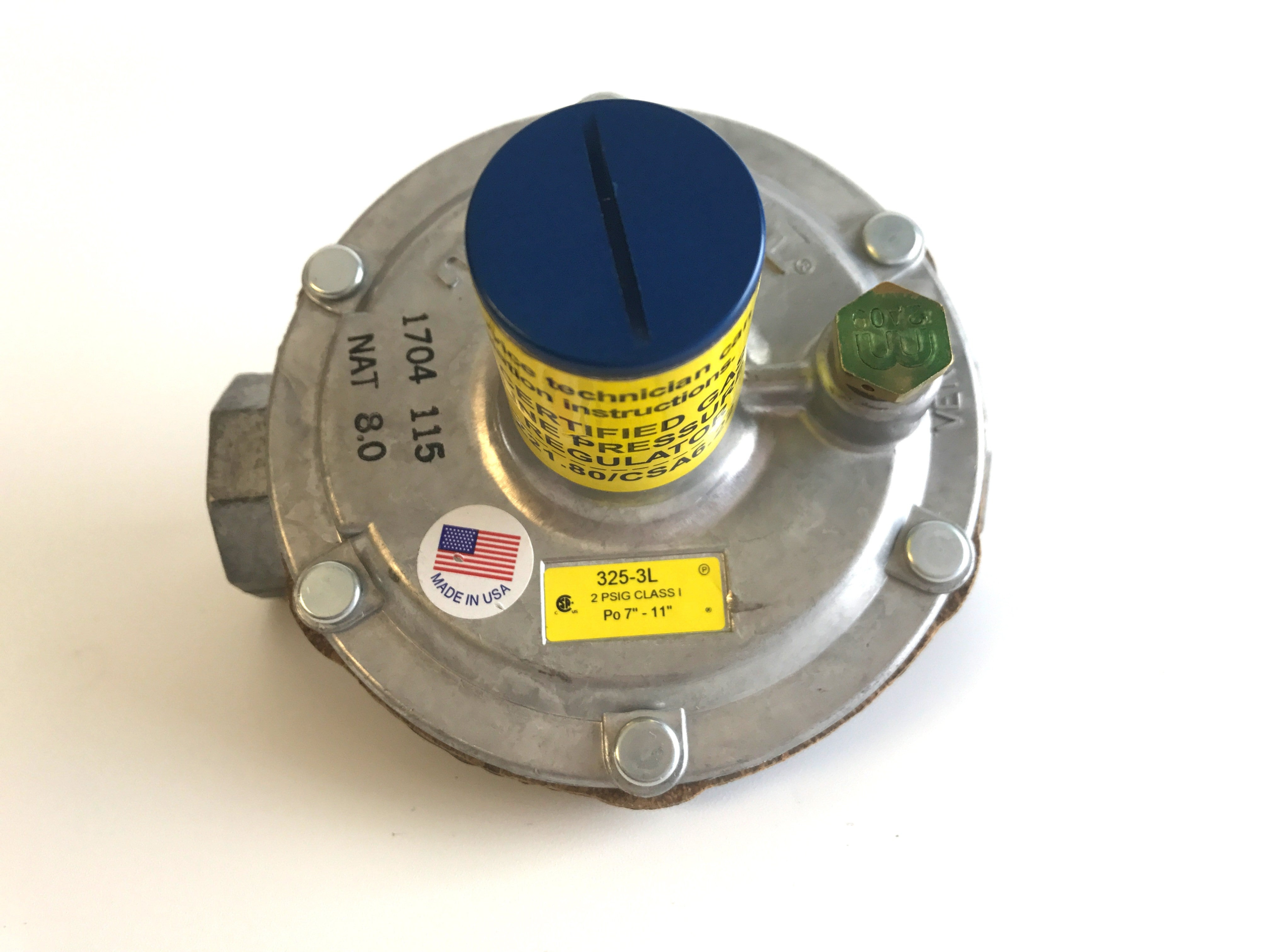

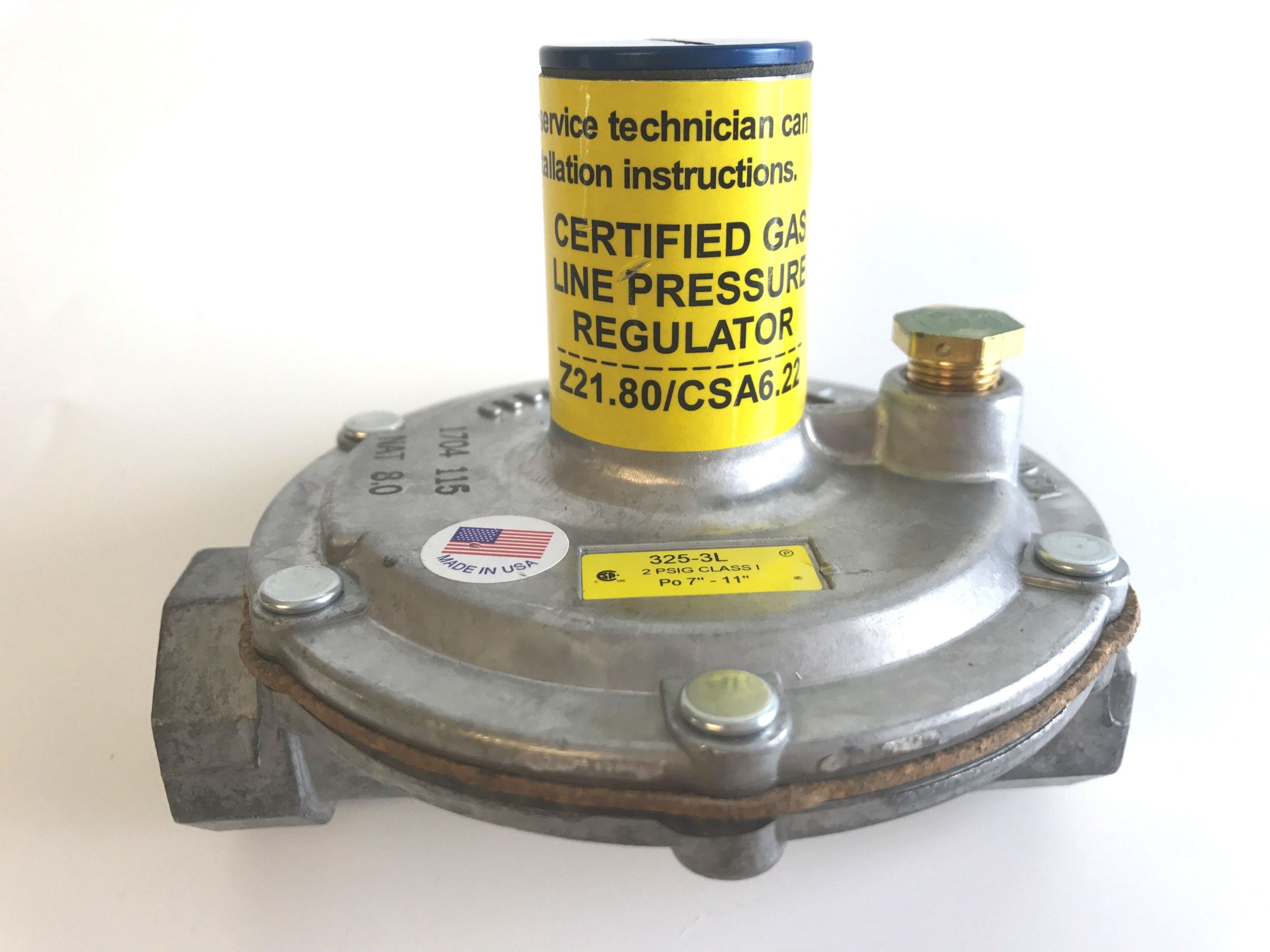

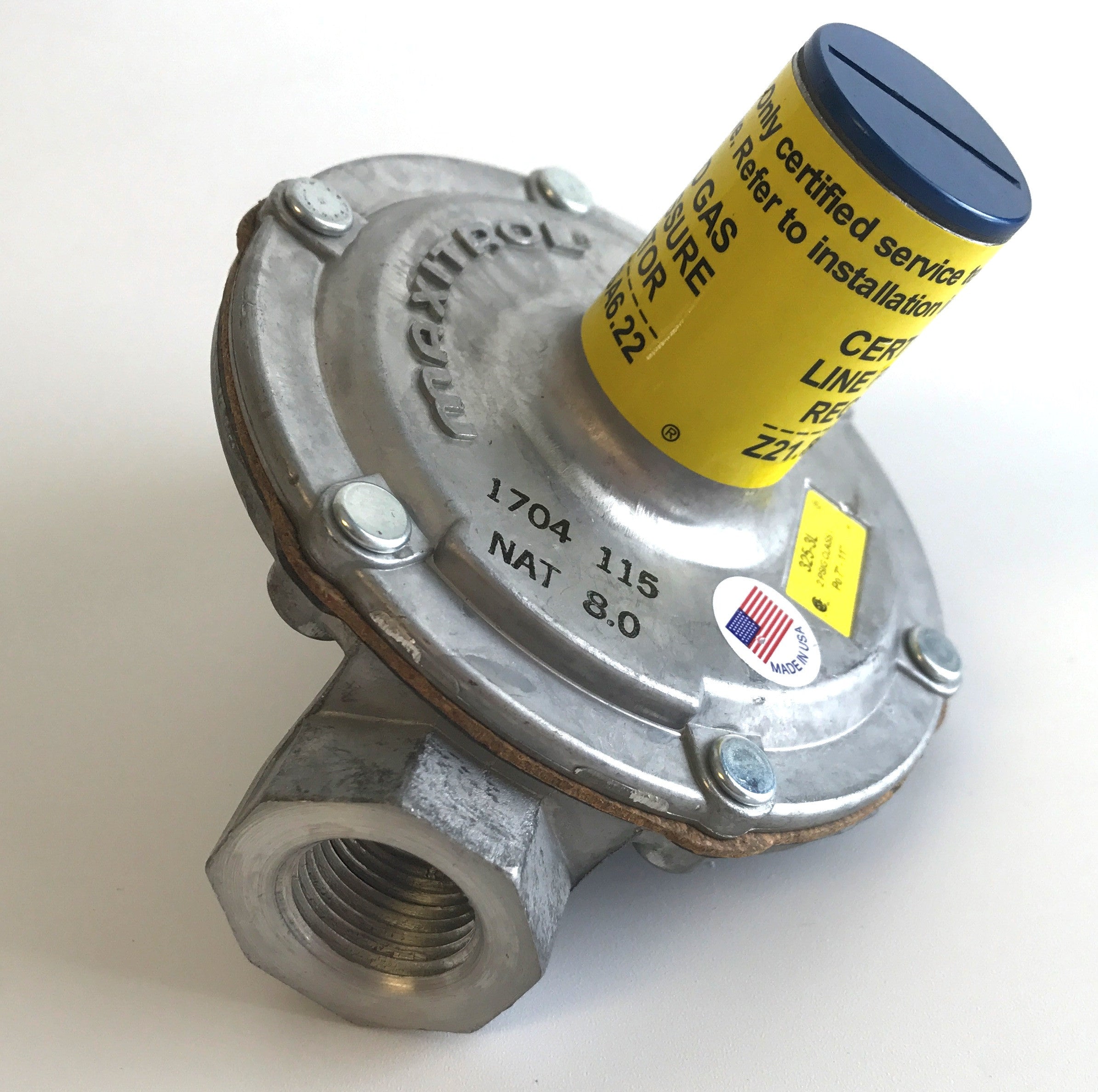

Manufacturer Part Number:  325-3L

CSA Rated Inlet Pressure:  2 psi (13.8 kPa)

Pressure Range: (inches w.c.):  7-11

Ambient Temperature Range:  -40°F to 205°F (-40°C to 96°C)

Technical Documentation:

Line Pressure Regulator Guidebook

Gas Pressure Regulator Catalog
