5/16" Ball Joint Female Rod Ends

5/16" Ball Joint Female Rod Ends

SKU: NW LKG 01826 Category:

$6.50

11 in stock

Description

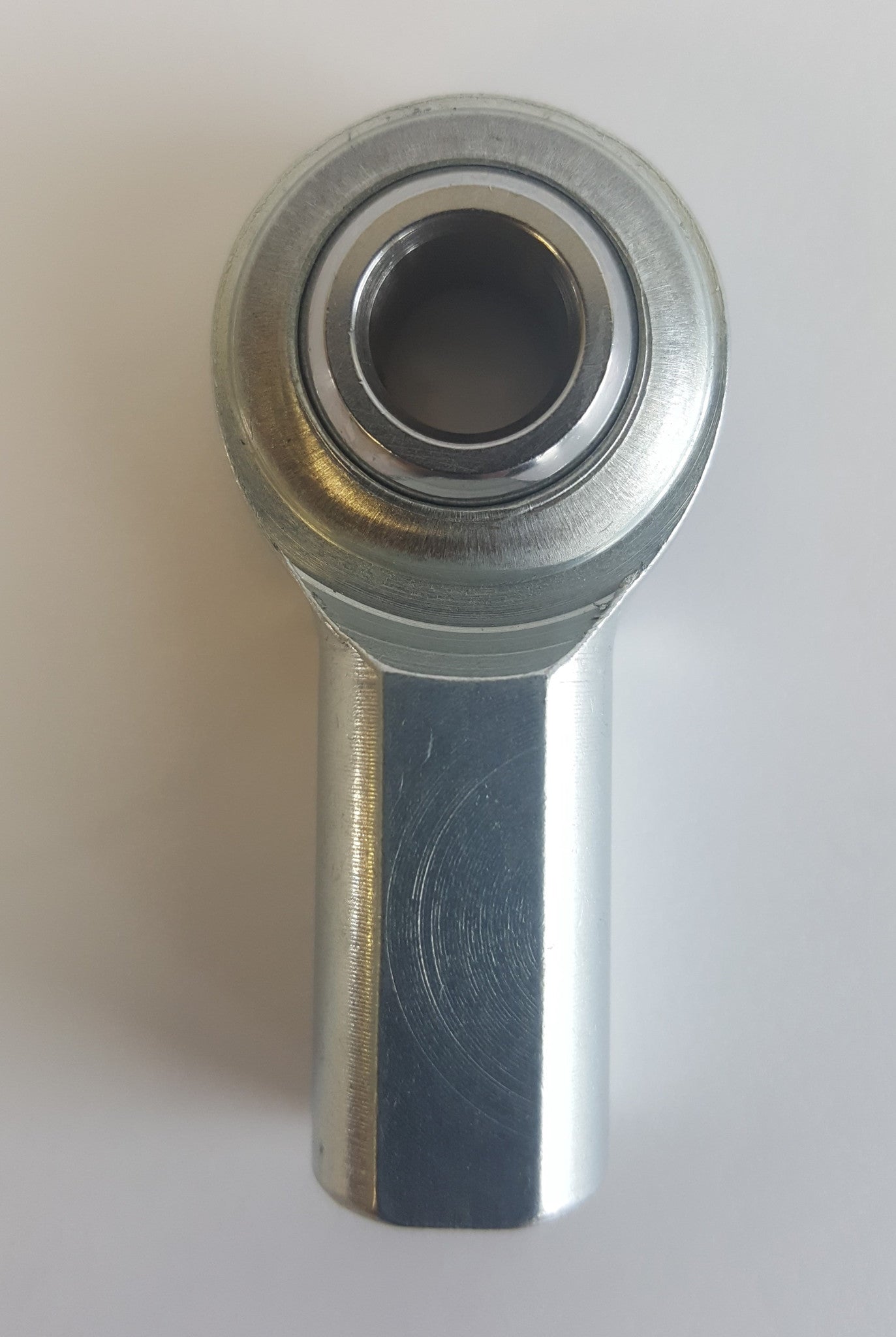

Description: These general purpose rod ends will meet your basic connection needs.  Inch sizes have a zinc-plated steel housing and chrome-plated steel ball.

Specifications:

Material:  Steel

Shank Thread Direction:  Right-Hand Threads

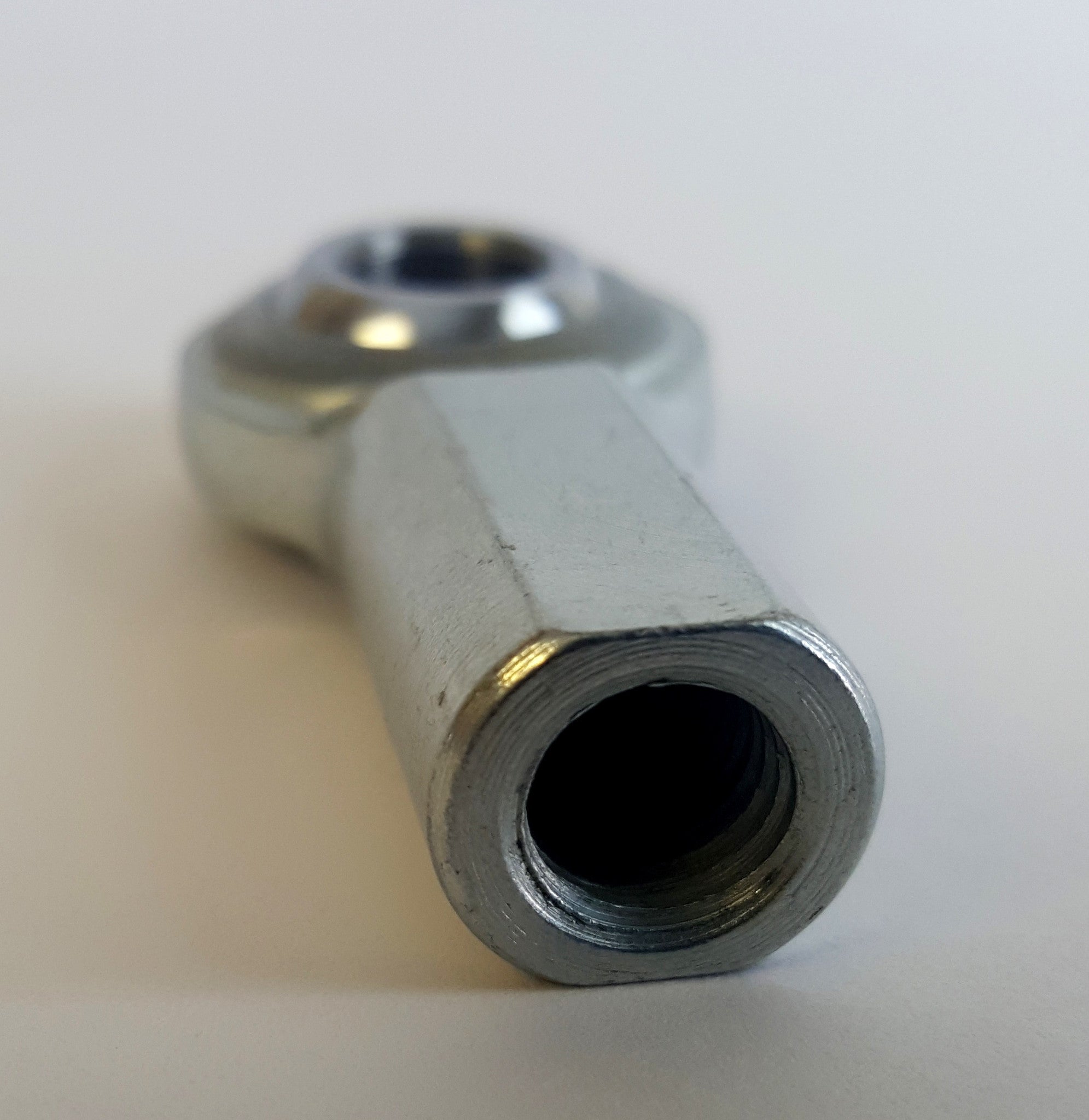

Shank Type:  Female-Threaded

Shank Thread Size:  5/16″-24

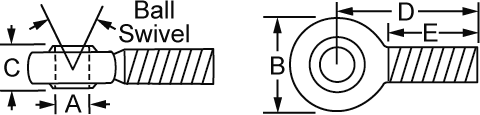

Ball ID (A):  5/16″

Maximum Ball Swivel:  22°

Overall Width (B):  7/8″

Overall Thickness (C):  7/16″

(D):  1-3/8″

Thread Length (E):  11/16″

Static Radial Load Capacity:  5,110 lbs

Additional Specifications:  Inch Sizes

RoHS:  Compliant

* If the order is placed where the quantity ordered is more than the quantity available, all items “In stock” will be shipped and the remainder of the items will be shipped as soon as we receive the back ordered items.

Additional information

Weight 1.2 kg
