Description

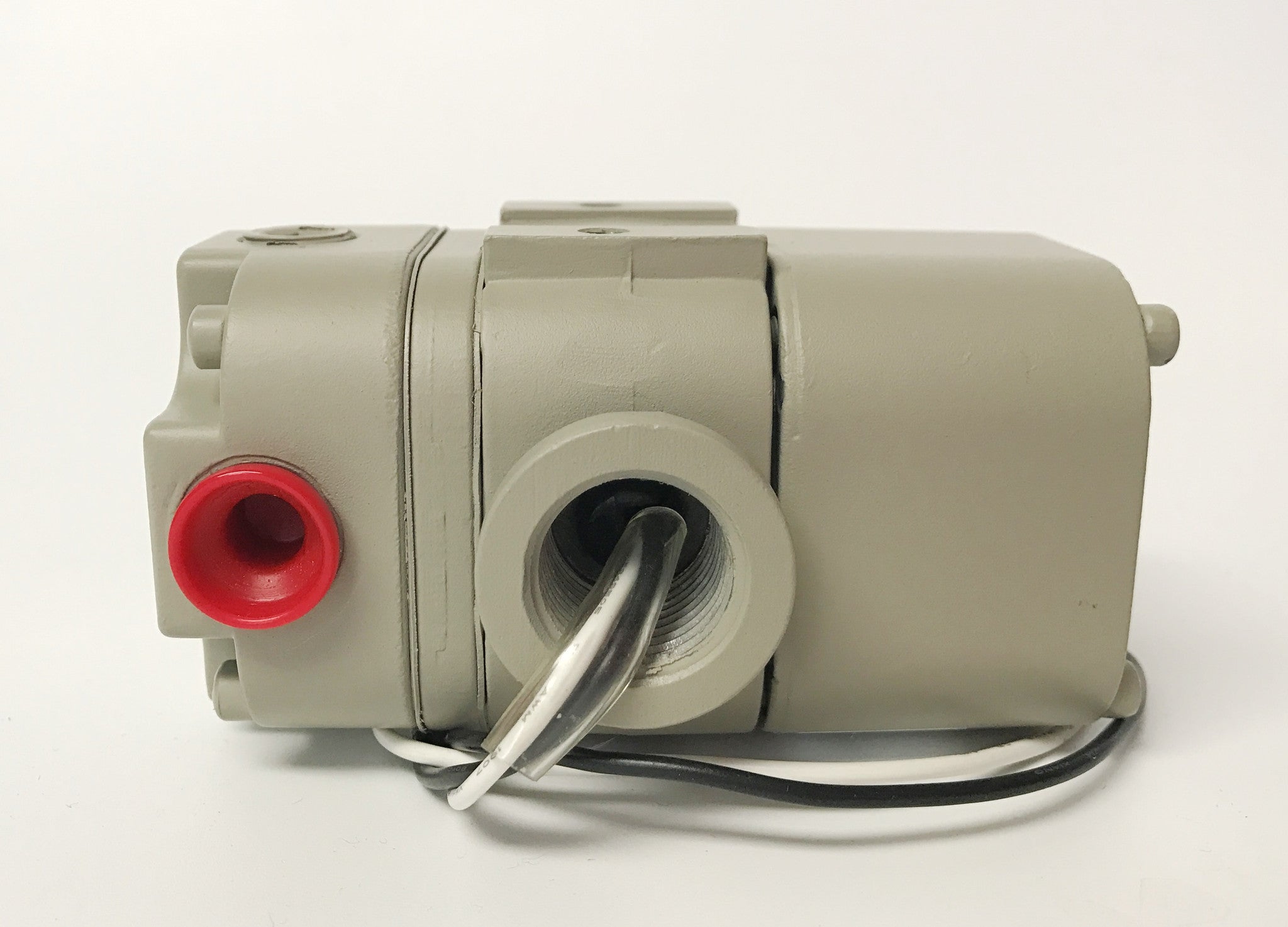

Description: The Type 1000 Transducer is an electro-pneumatic device that reduces a supply pressure to a regulated output pressure directly proportional to an electrical input signal. The Type 1000 accepts a wide range of supply pressures, ranging from a minimum of 3 psig (0.2 BAR) above the maximum output up to 100 PSIG (6.9 BAR). An integral pneumatic volume booster is included in the design to provide high flow capacity (up to 12 SCFM/339 SLPM). Model selections include general purpose, NEMA 4X Type, extended range, high relief, intrinsically safe, and explosion proof.

The 4-20 mA input, 3-15 PSIG output model can be recalibrated to provide 3-9 PSIG or 9-15 PSIG output for split ranging applications.

Brand:  Marsh/Bellofram

Series:  T1000

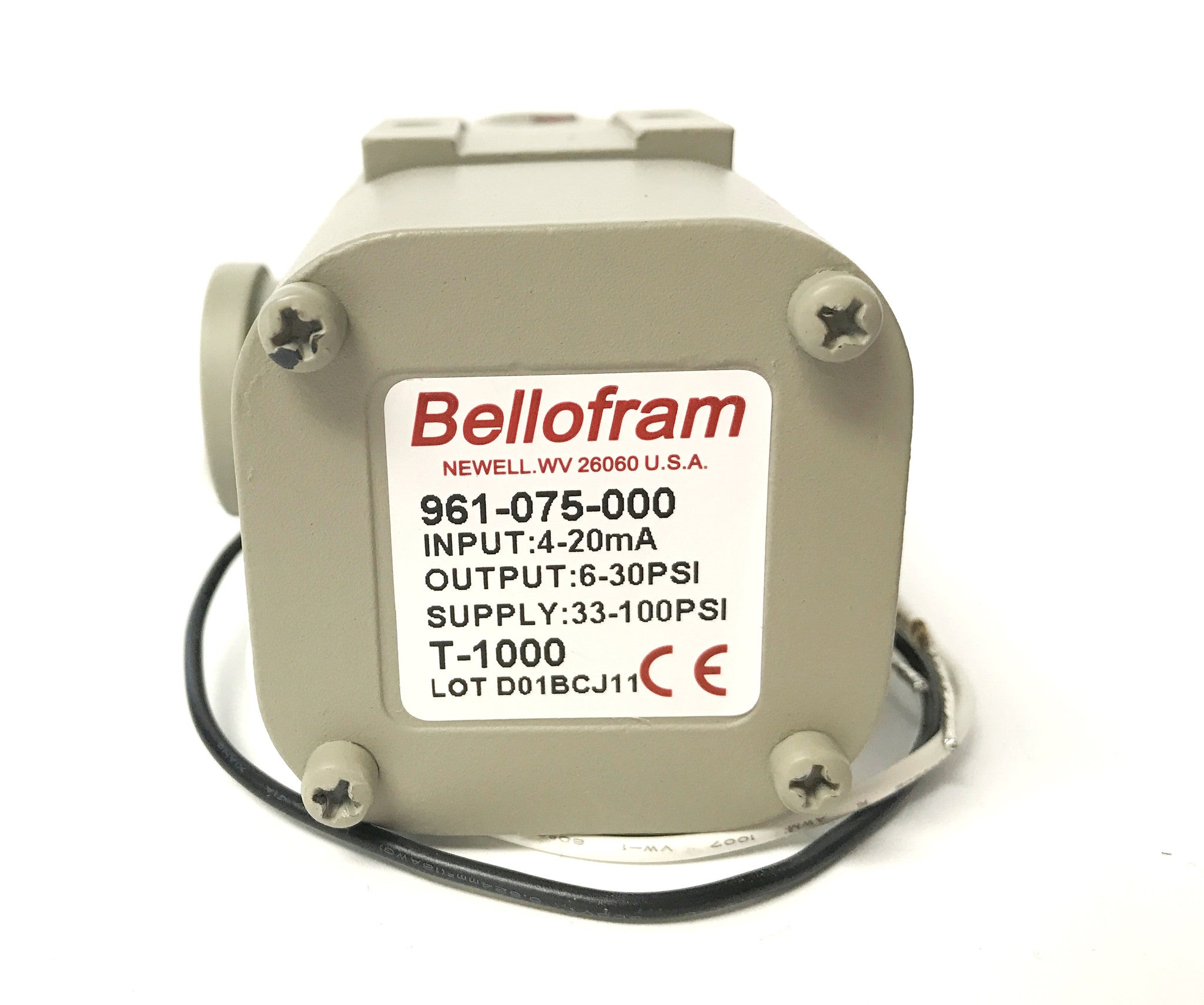

Manufacturer Part Number:  961-075-000

Features:

• Lightweight and Low Cost
• Built-in Volume Booster
• Small Size
• Field Reversible
• Low Air Consumption
• Mounts at Any Angle

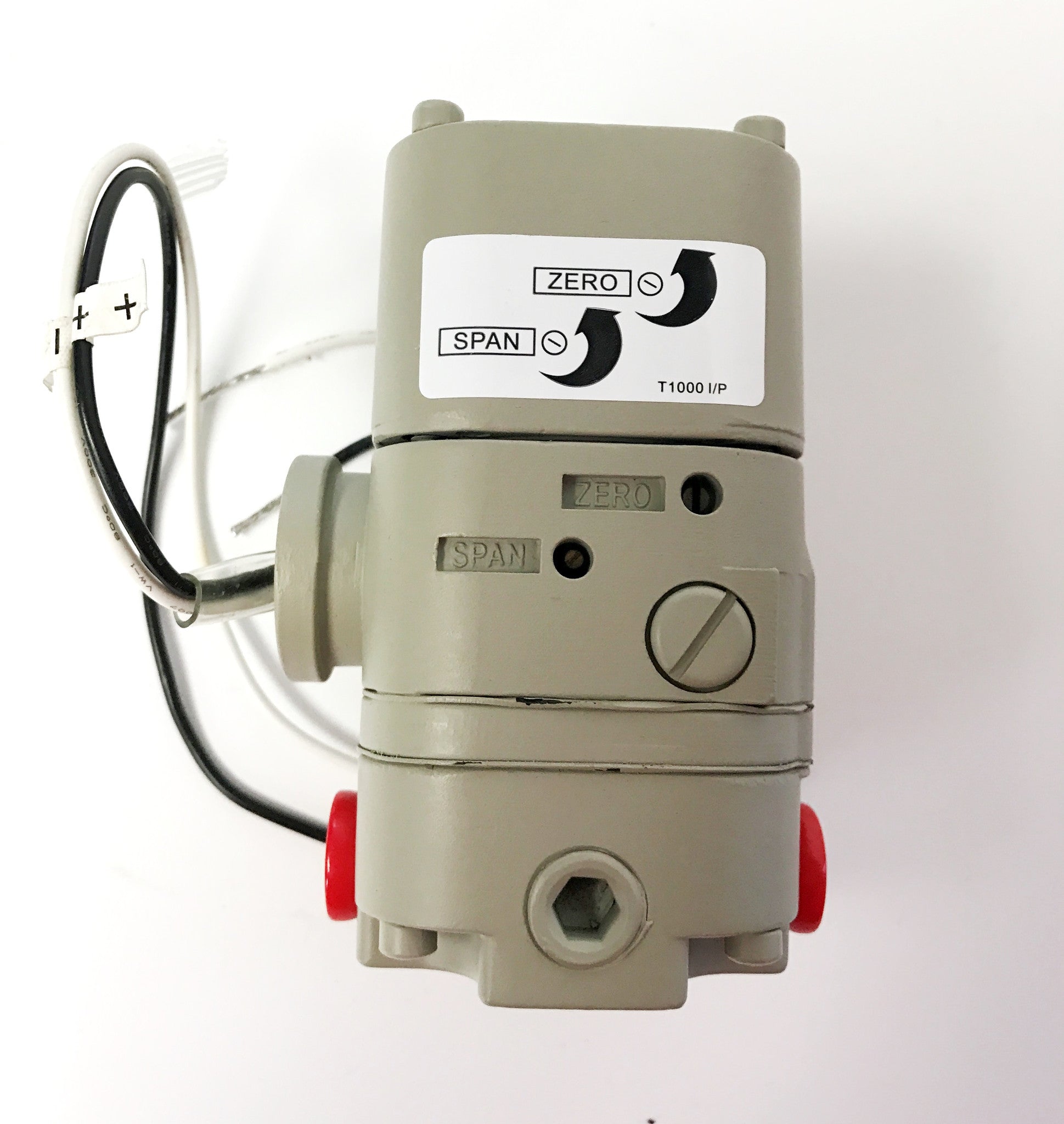

• Convenient External Span & Zero Adjusts (Except for Explosion Proof Models)
• Wide Supply Pressure Range
• Low Supply Pressure Sensitivity

Applications:

• Valve Actuators
• Damper and Louver Actuators
• Valve Positioners
• Controllers
• Relays
• Air Cylinders
• Clutches and Brakes
• Liquid, Gas and Slurry Processing Instrumentation
• HVAC Systems
• Paper Handling Controls
• Textile Processing Systems
• Energy Management Systems
• Petrochemical Processing Systems
• Split Ranging

Technical Documentation:

Marsh/Bellofram Type 1000 I/P& E/P Transducers
