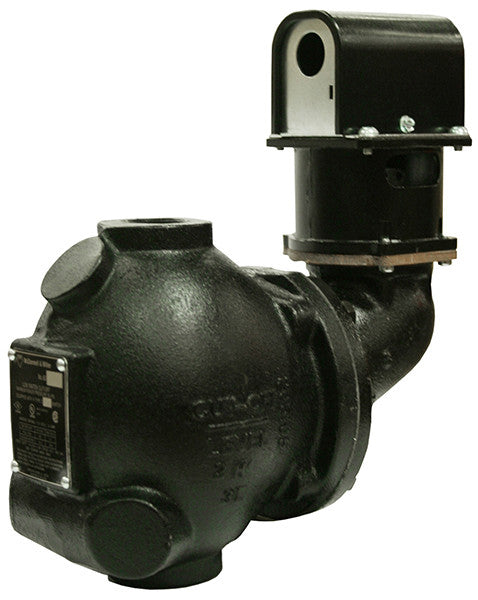

Series 63 Low Water Cut-Off – Mechanical for Steam Boiler and Hot Water Boilers
$0.00
Description
Series 63 Low Water Cut Off
Features and Benefits
- For residential, commercial and industrial applications
- Heavy duty
- Includes No. 2 switch
- Optional manual reset available
- Maximum boiler pressure 5 psi (204kg/cm2)
- Use with TC-4 on hot water systems
Electrical Ratings:
| Voltage | Motor Switch Rating (Amperes) 120 VDC .5 Amp | Pilot Duty | |
| Full Load | Locked Rotor | ||
| 120 VAC | 10.2 | 61.2 | 125 VA at 120 or 240 VAC 60 Hz |
| 240 VAC | 5.1 | 30.6 | |
Dimensions
Click on the following to view dimensions:
MM 825H McDonnell & Miller General Catalog
Ordering Information:
| Model Number | Part Number | Description |
| 63 | 142400 | Low Water Cut-Off |
| 63-B | 142700 | 63 w/float block |
| 63-BM | 143300 | 63 w/float block & Manual Reset |
| 63-M | 143100 | 63 w/manual reset |
Technical Documentation:
MM 825H McDonnell & Miller General Catalog
Installation/Operation Manuals:
MM 206H Series 63 Low Water Cut-Off
MM 715D Series 63 64/764 and 65/165 Replacement Floats
Parts Lists:
Additional information
| Title | Default Title |
|---|
