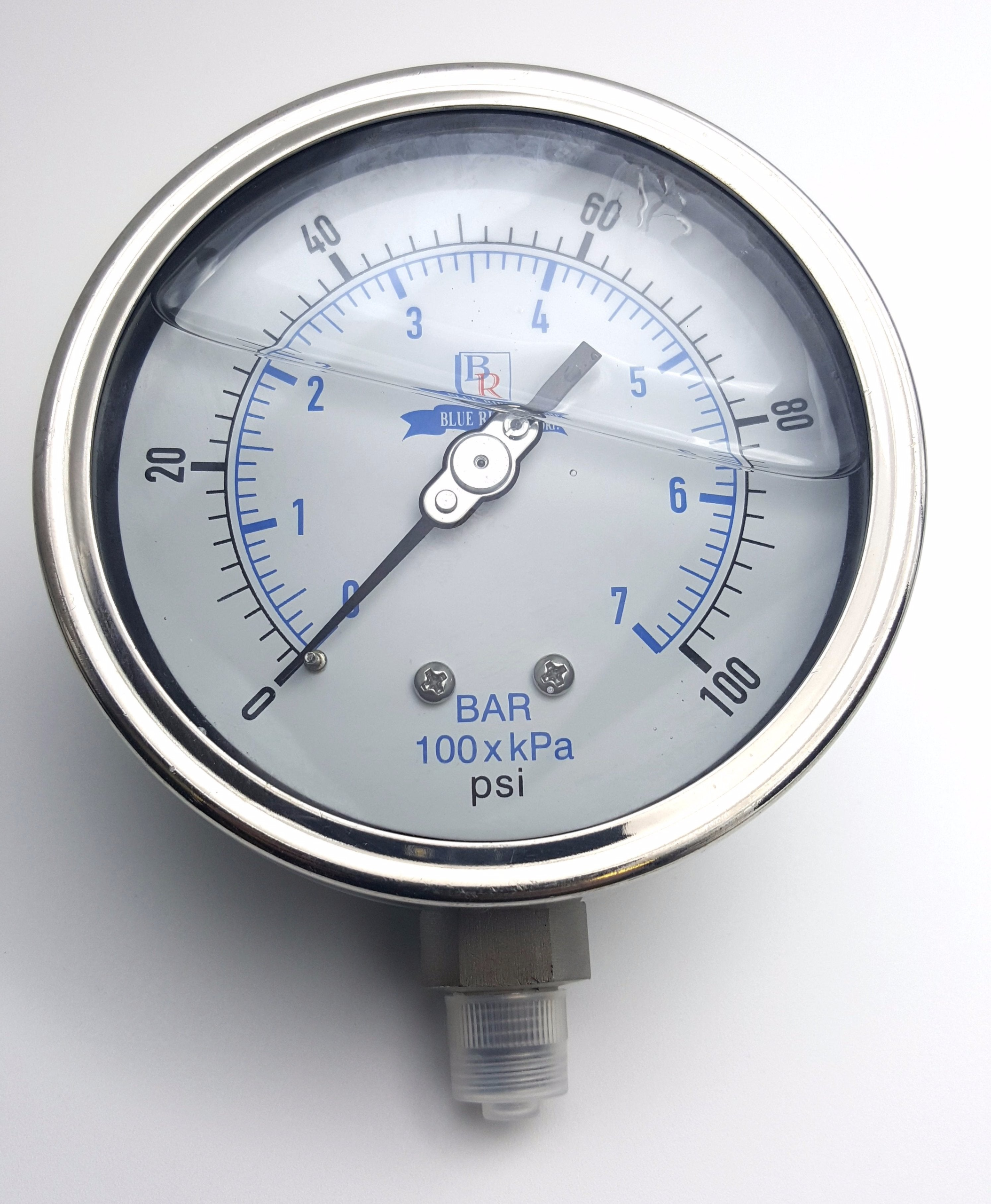

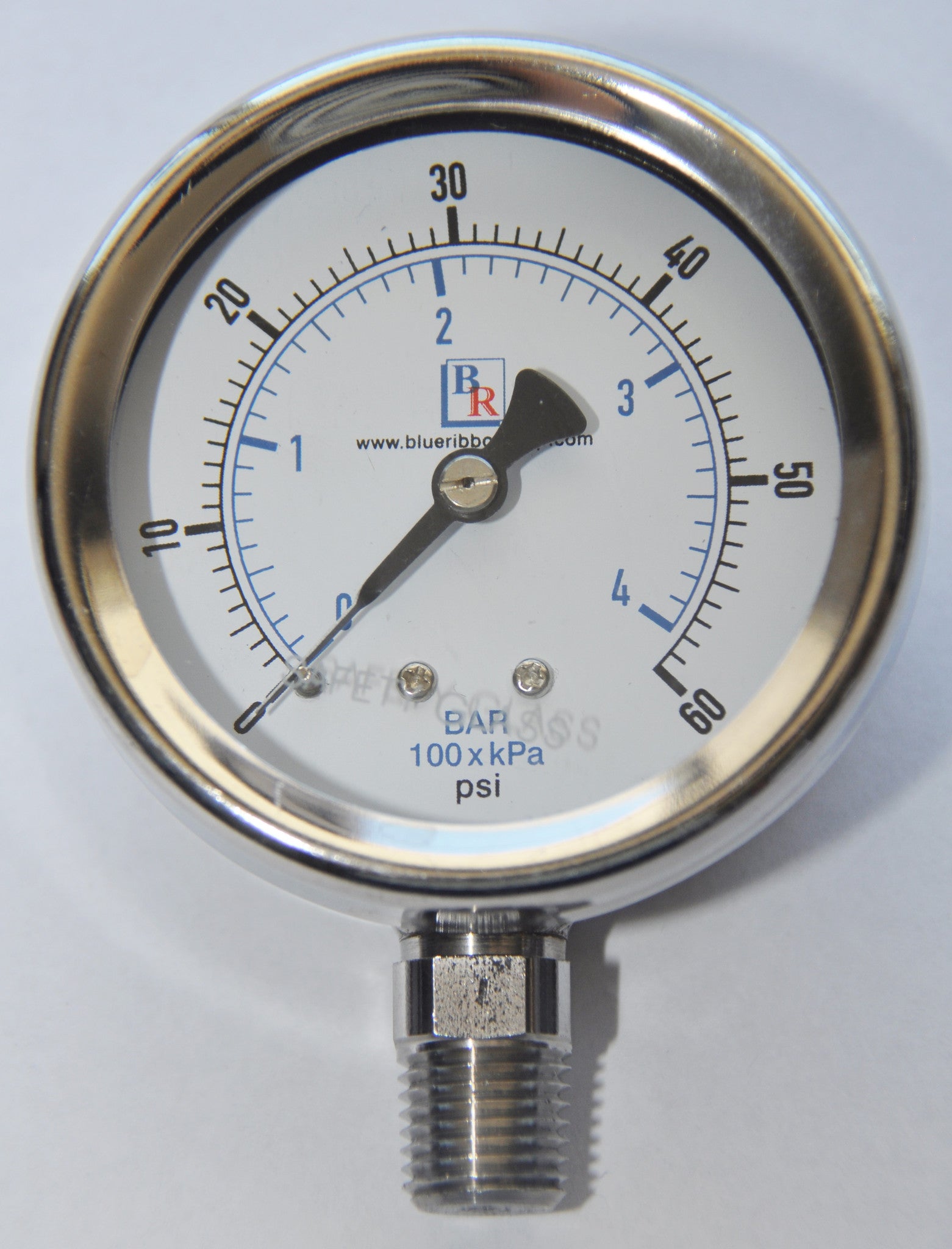

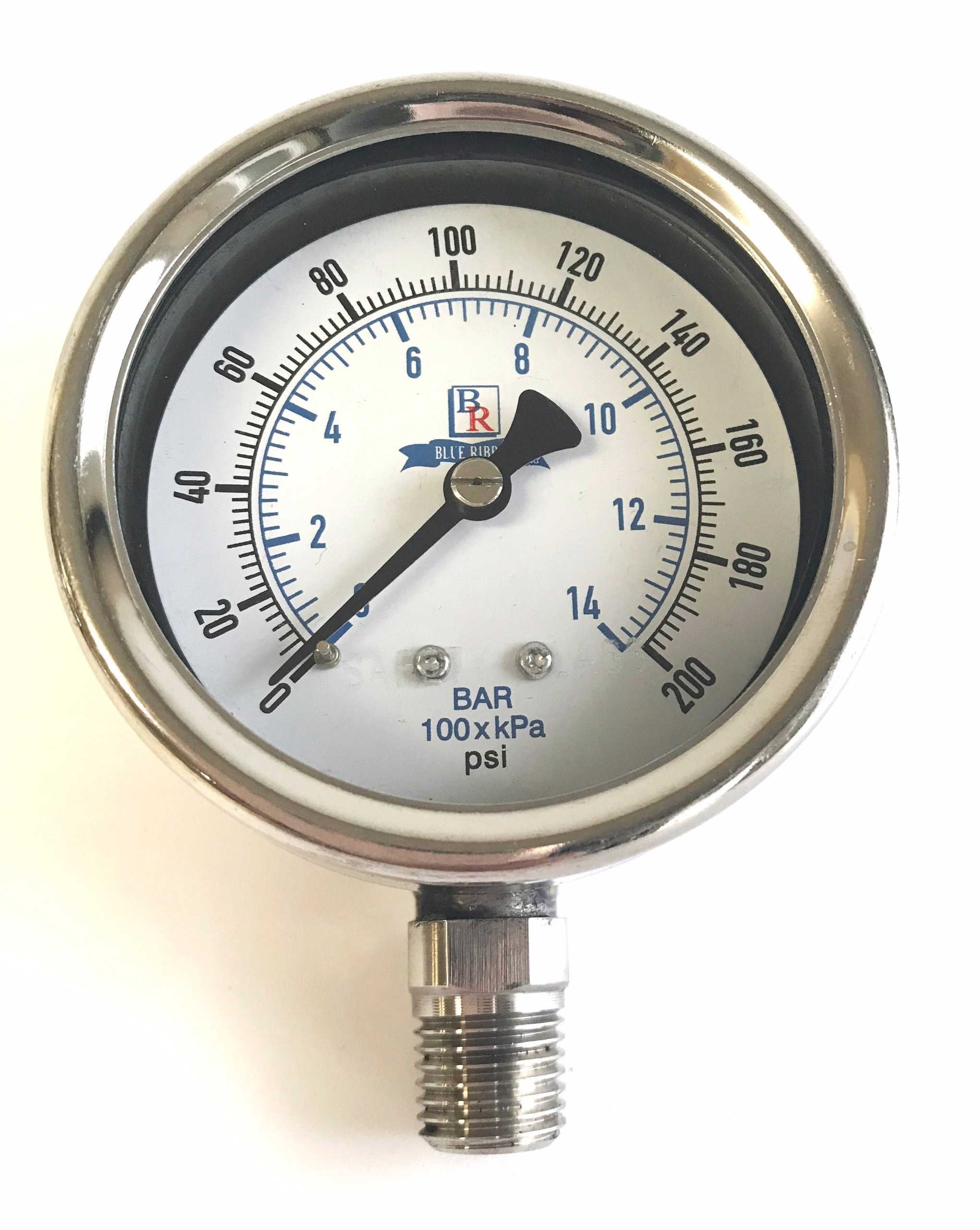

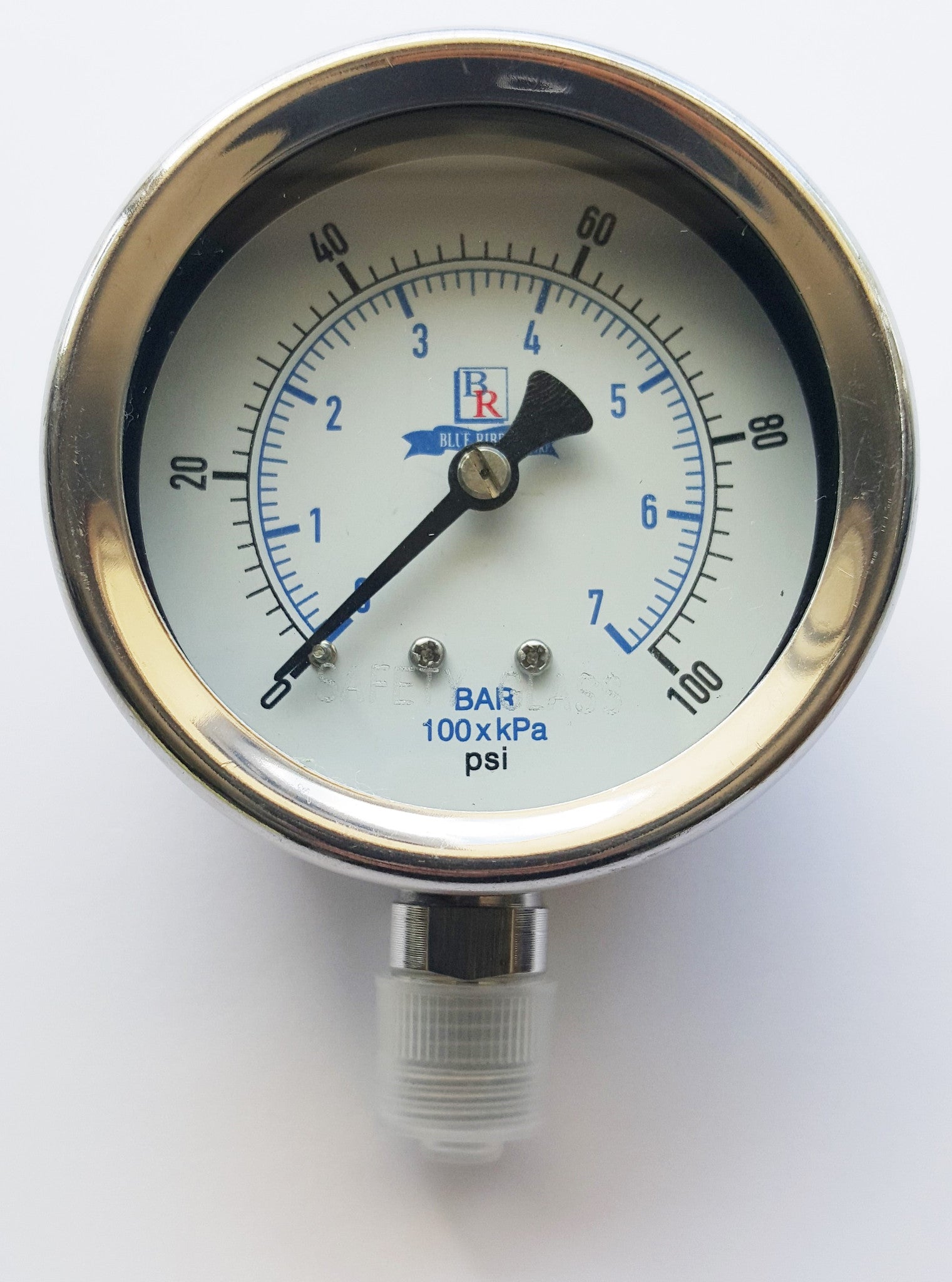

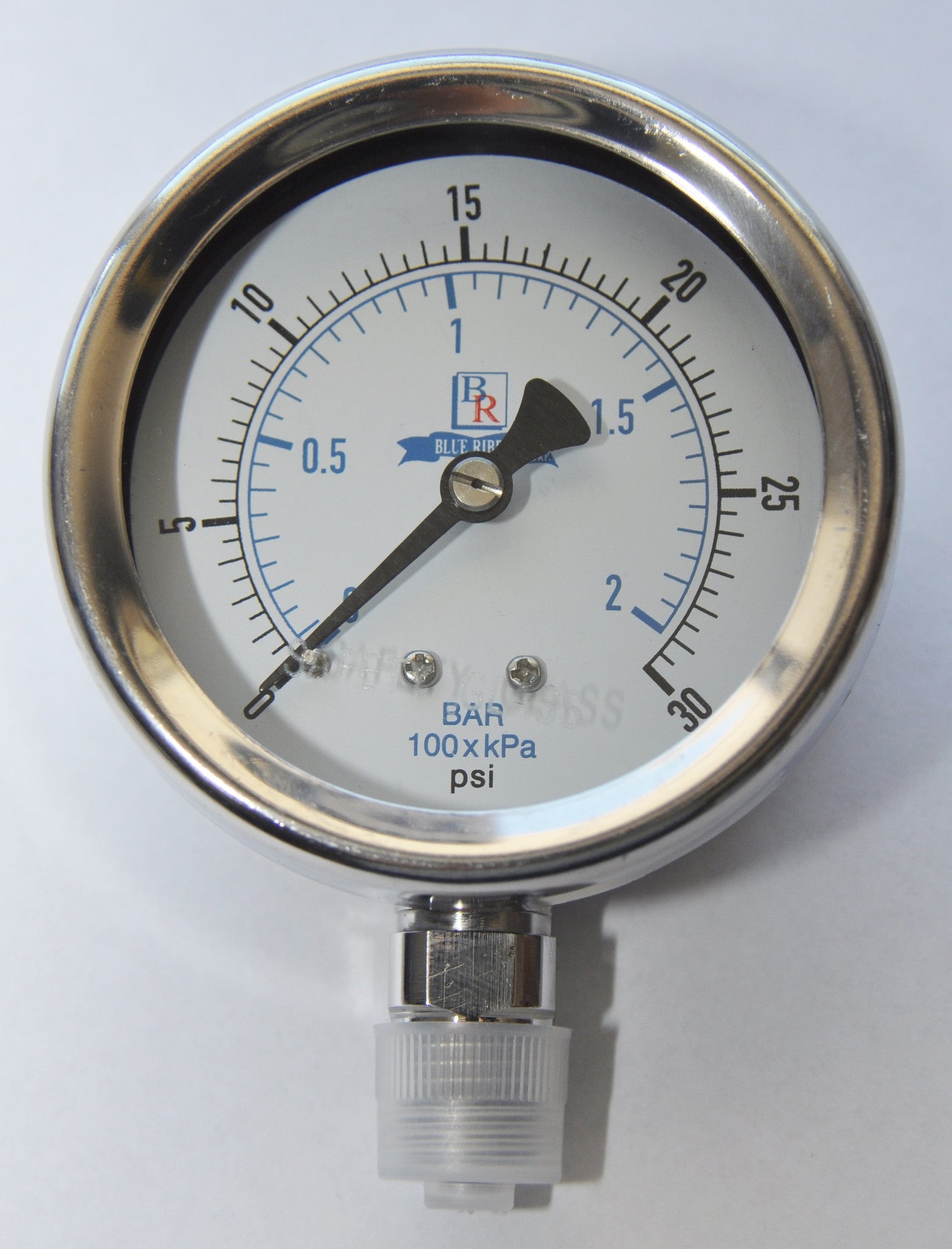

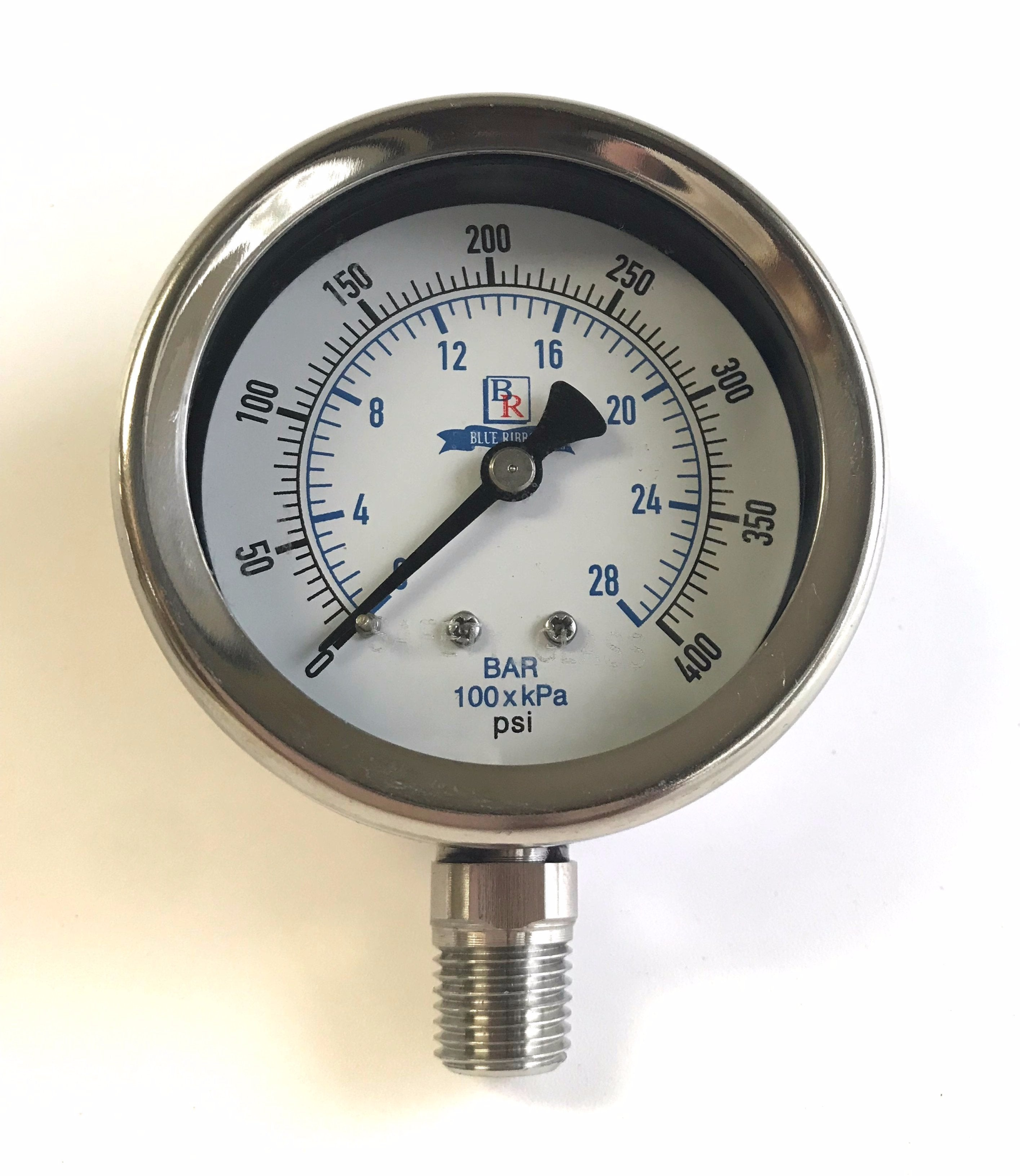

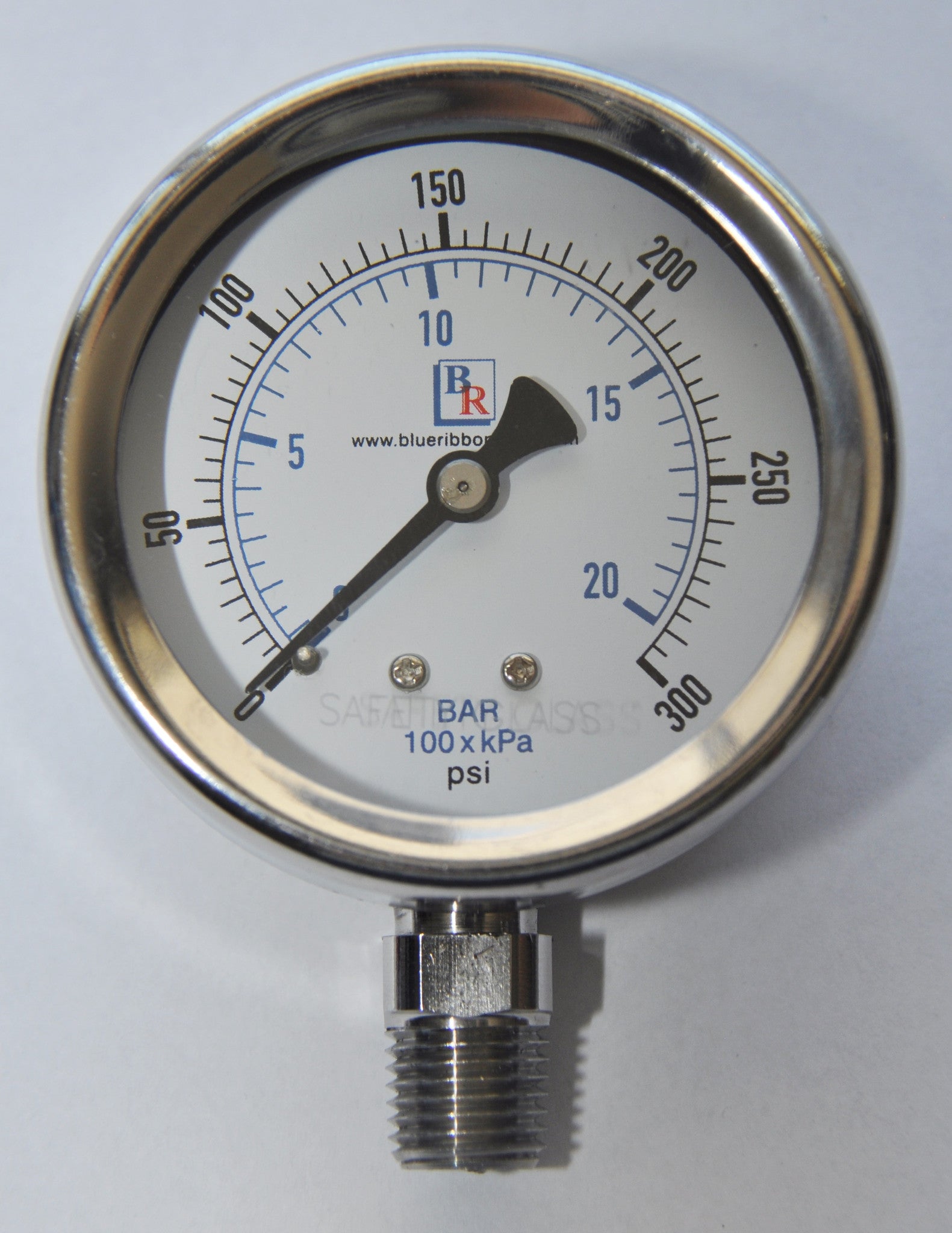

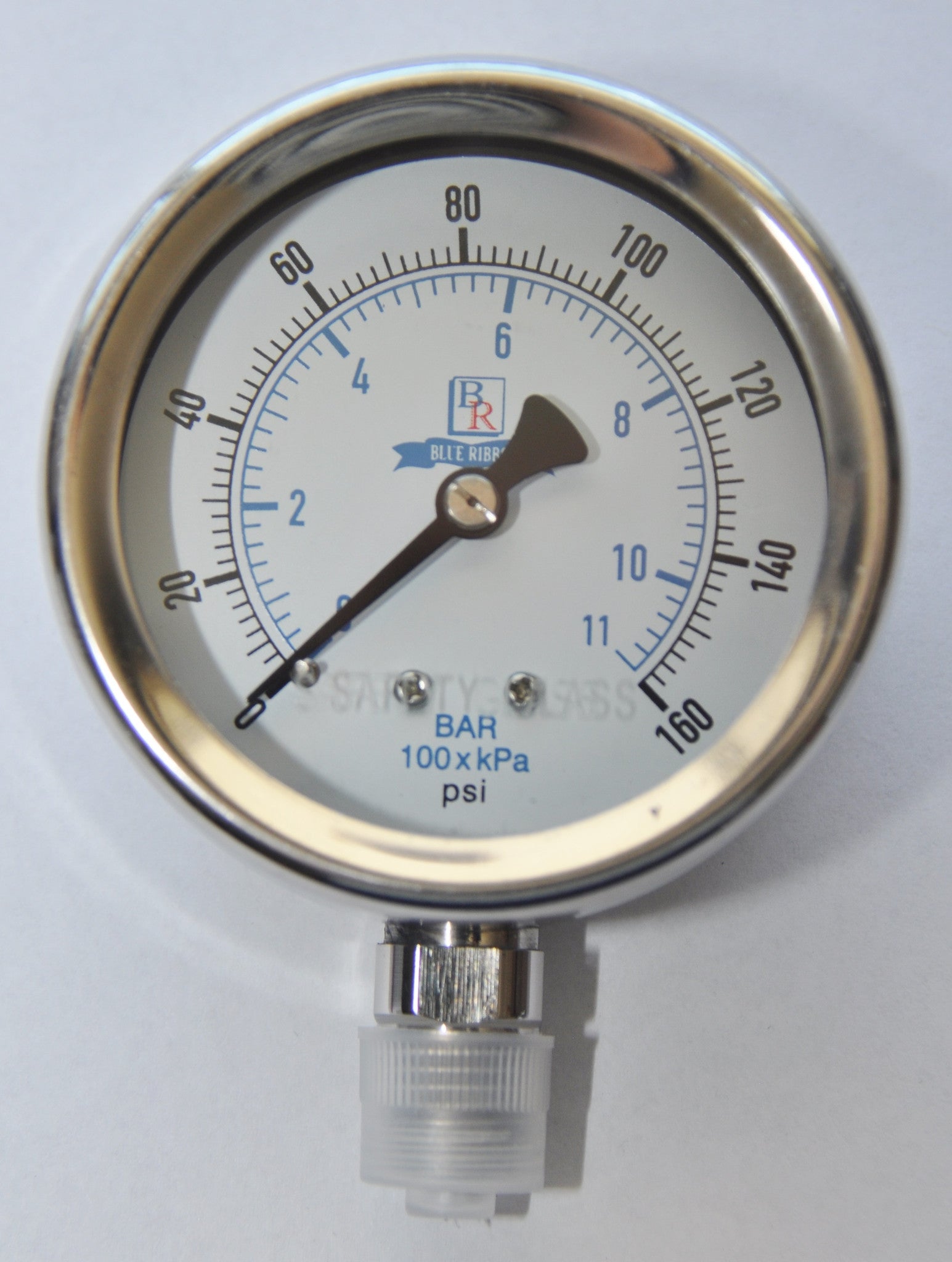

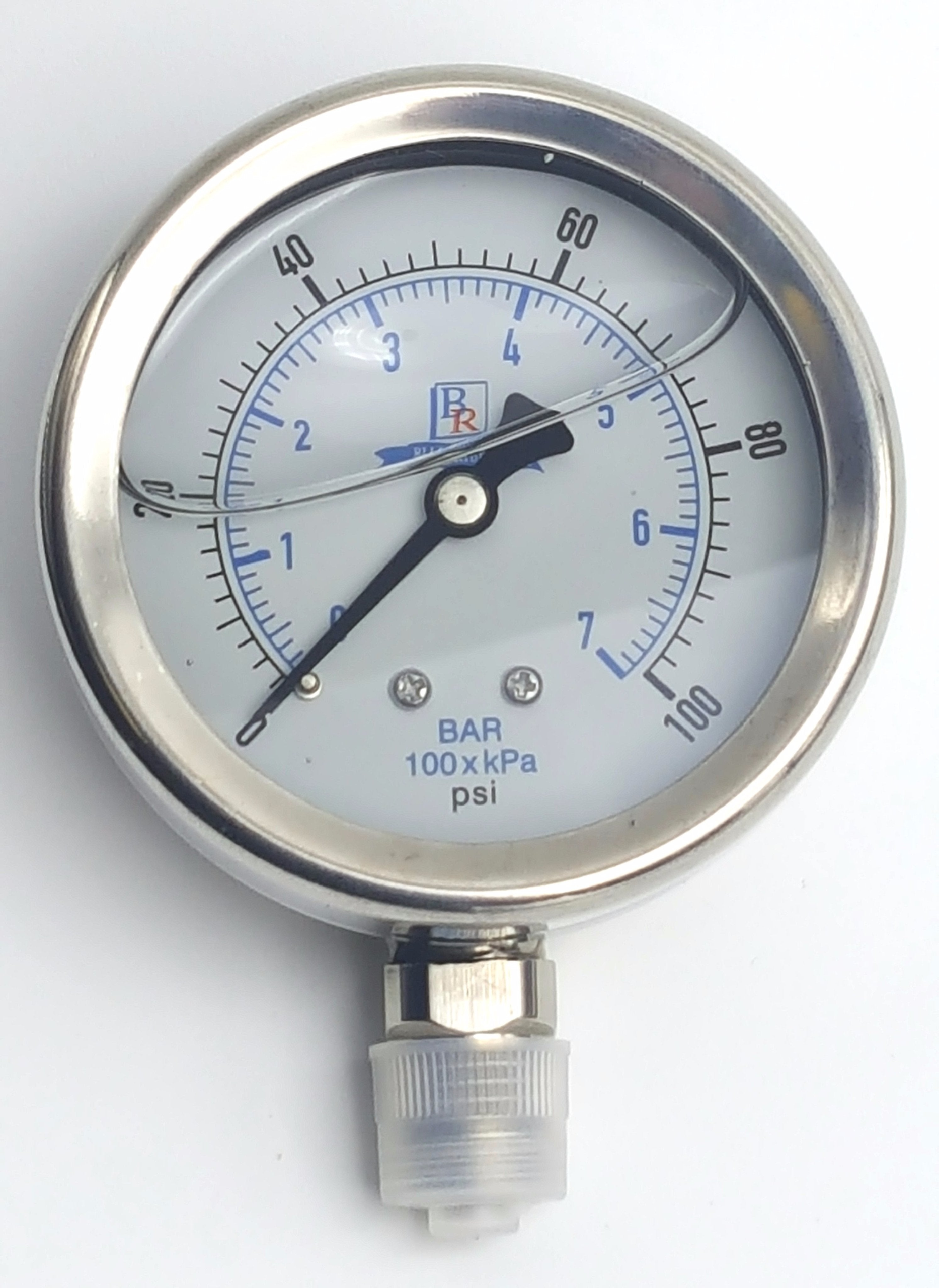

2.5" Dial Bottom Connected Gauge SS Model BR300
$55.00 – $100.12
Description
Description: The Model BR300 series from Blue Ribbon Corporation is a high-quality dry or liquid-filled, all stainless steel back or bottom mount gauge for applications where brass may not be an option.
Manufacturer: Blue Ribbon Corporation
Specification:
- 316 Stainless Steel Case with bayonet bezel design
- 316 Stainless Steel Internals
- Stainless Steel Bourdon Tube & Connection
- IP65 Enclosure
- Glycerine fill standard, Dry available
- Accuracy: 2½” Dial – 1.6%; 4” and 6” Dials – 1%
- Dual Scale: PSI & BAR (x100=kPa)
- Ambient Temperature: Filled: +30 ºF to +160 ºF; Dry: -30 ºF to +180 ºF
- Safety Glass Lens
- Welded Socket
- Overpressure Limit: 30% FSO
- Working Pressure: 75% FSO
Technical Documentation:
Model BR300 Bottom Connected Stainless Gauge
*For other sizes please contact our office at (360) 256-0923 or email us at info@nwim.us
* If the order is placed where the quantity ordered is more than the quantity available, all items “In stock” will be shipped and the remainder of the items will be shipped as soon as we receive the back ordered items.
Additional information
| Select Dial Size, PSI/BAR, Dry or Liquid Filled | 2.5", 0-100 PSI/BAR, DRY, 2.5", 0-100 PSI/KPA/BAR, LIQUID FILLED, 2.5", 0-160 PSI/BAR, DRY, 2.5", 0-200 PSI/KPA/BAR, DRY, 2.5", 0-30 PSI/BAR, DRY, 2.5", 0-300 PSI/BAR, DRY, 2.5", 0-400 PSI/KPA/BAR, DRY, 2.5", 0-60 PSI/BAR, DRY, 4", 0-100 PSI/KPA/BAR, LIQUID FILLED |
|---|
