Description

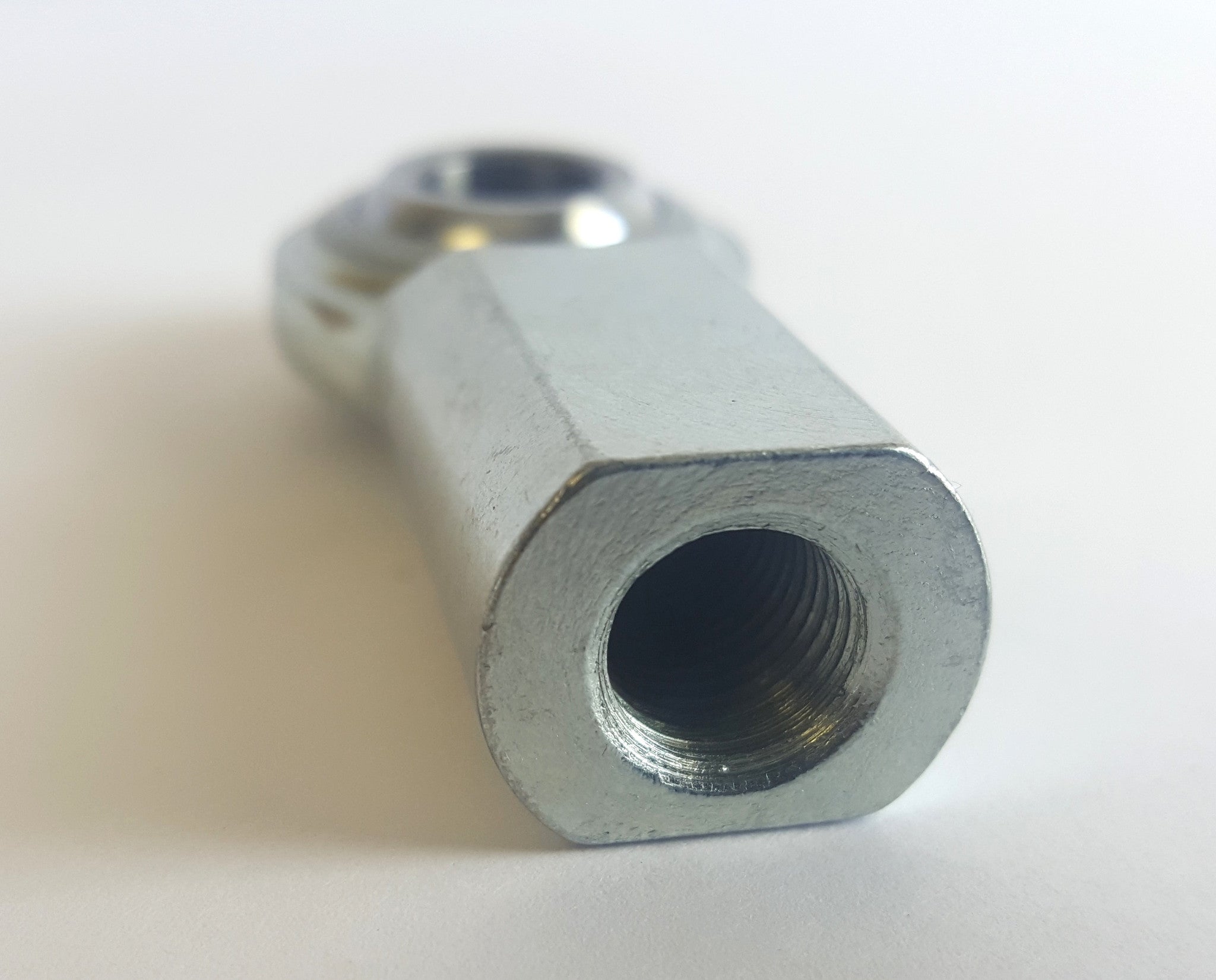

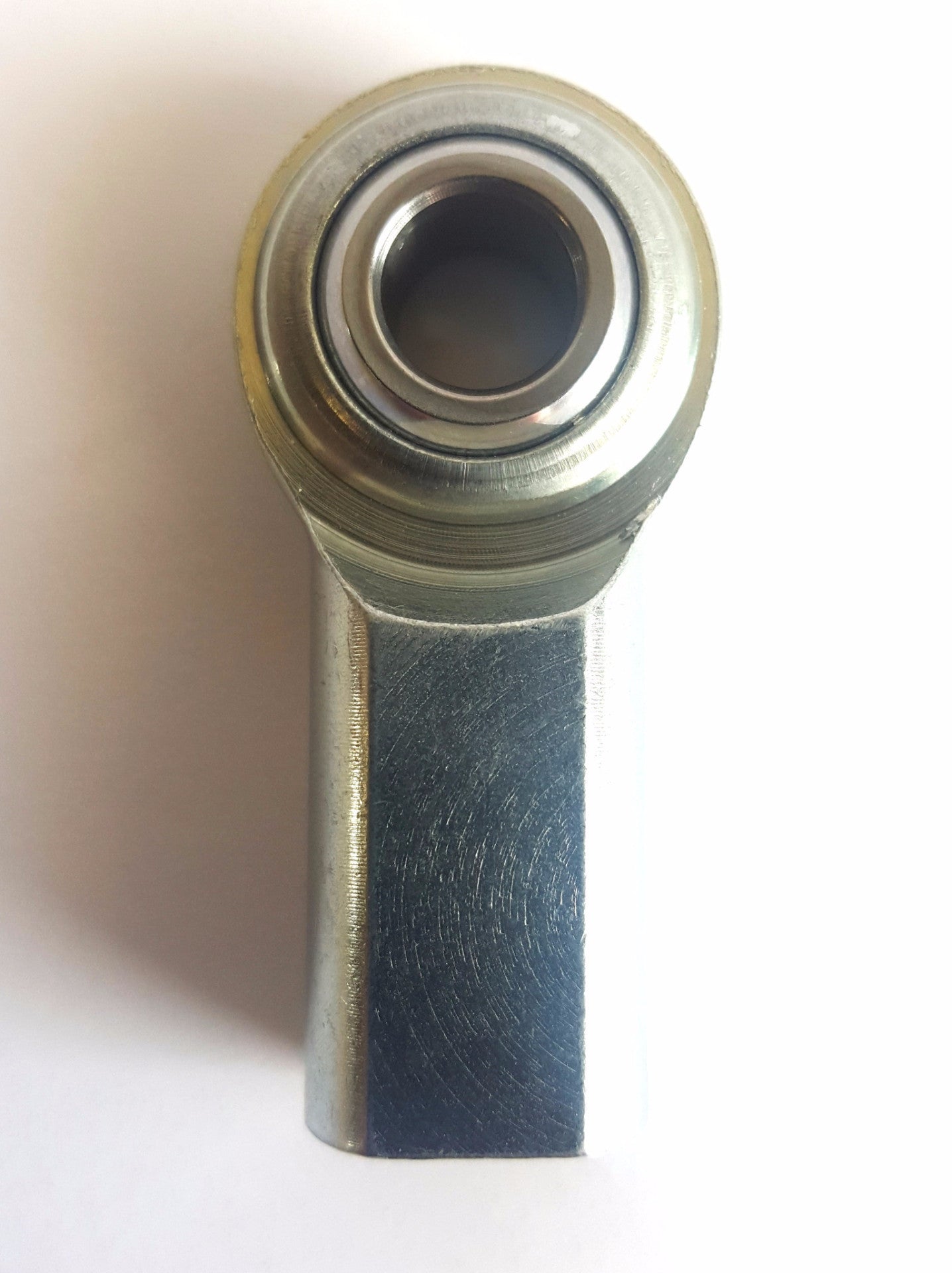

Description:  These general purpose rod ends will meet your basic connection needs.  Inch sizes have a zinc-plated steel housing and chrome-plated steel ball (unless noted).

Specifications:

Shank Thread Direction:  Right-Hand Threads

Shank Type:  Female Threaded

Shank Thread Size:  3/8″ -24

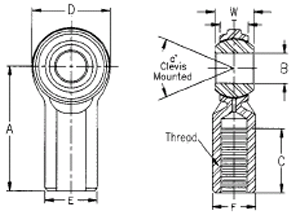

Ball ID (A):  3/8″

Maximum Ball Swivel:  22°

Overall Width (B):  1″

Overall Thickness (C):  1/2″

(D):  1-5/8″

Thread Length (E):  13/16″

RoHS:  Compliant

Part Type:  Rod Ends

Rod End Construction:  2-piece

Rod End Style: Metal to metal

Jam Nut Included:  No

Grease Fitting:  No

Heat-Treated:  Yes

Rod End Static Load Capacity: 6,323 lbs.

Rod End Material:  Carbon steel

Rod End Finish:  Zinc plated
